2.19K Automotive AC Evaporator NTC Temperature Sensor

The AC (air conditioning) evaporator NTC (Negative Temperature Coefficient) temperature sensor with a resistance value of 2.19K (2.19 kilohms).

Product Description:

AC Evaporator:

The AC evaporator is a component in the air conditioning system of a vehicle. It is located inside the evaporator core and is responsible for absorbing heat from the air, thus cooling it.

NTC Temperature Sensor:

The NTC temperature sensor is a type of thermistor. NTC thermistors exhibit a decrease in resistance as temperature increases, hence the term "Negative Temperature Coefficient." They are commonly used to measure temperature in various applications.

Resistance Value - 2.19K:

The resistance value of 2.19K indicates that the sensor has a resistance of 2.19 kilohms at a specific temperature. NTC thermistors have a nonlinear resistance-temperature characteristic, meaning their resistance changes more rapidly at certain temperature ranges.

Role of the Temperature Sensor:

The NTC temperature sensor in the AC evaporator plays a crucial role in regulating the temperature of the evaporator. It provides feedback to the vehicle's HVAC (heating, ventilation, and air conditioning) system, allowing it to control the compressor and other components to maintain the desired cabin temperature.

Parameter:

Resistance Value: R25℃=2.19KΩ±3%

B25/50=3470K±2%

Probe: Al φ5.5-3.5*23.5mm

Wire: PVC parallel wire UL2651 24AWG*2C 11/0.16 OD1.45*3.05TS 105℃ Black

Wire length: (320±10)-(3±1)

Connector: AMP173645-1/ AMP368545-1 (White)

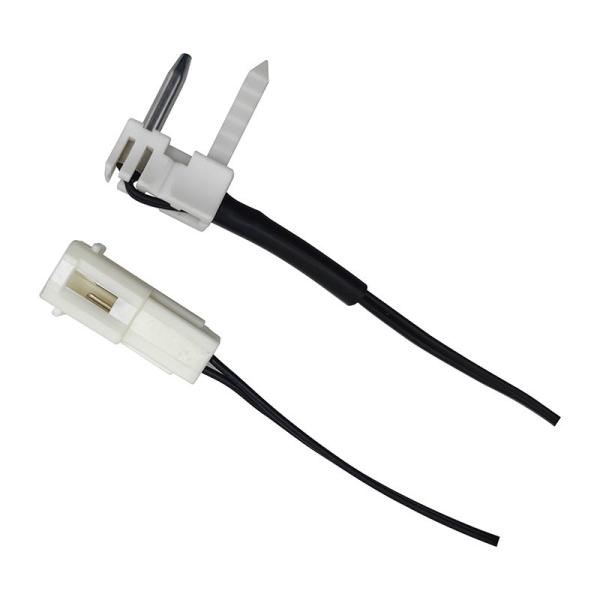

Product Display:

Hefei Jingpu Sensor Technology Co., Ltd. is a national high-tech enterprise integrating R&D, production, and sales of thermistors and temperature sensors which was established in 2014 and obtained IS09001 Certification in 2015, IS013485 Certification in 2018, CE Certification for medical products in 2019, and Medical Device License and Registration Certificate in 2020.

Our products include various epoxy-encapsulated and glass-encapsulated thermistors and various shell-encapsulated temperature sensors that are widely used in the medical industry (such as monitors, medical equipment, bacterial incubators, medical refrigerators, etc.), smart wearable devices, automobiles (such as water temperature, oil temperature, air conditioner, filter, intake pressure temperature, steering wheel, rearview mirror, tyre, battery pack, etc.), home appliances (such as air conditioner, refrigerator, electric water heater, induction cooker, electronic calendar, etc.), portable power bank, fire alarm, meteorology, ocean, etc.)
