5k 8k Epoxy Coated NTC Thermistor 10K 25 C For Automotive Seat Heater

Ask Lasest Price
Brand Name :	JP SENSOR
Model Number :	MF5A-5
Certification :	ISO9001
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	200 Million per Year
Delivery Time :	2 Weeks
Price :	Negotiable

Add to Cart

Product Details
Company Profile

5k 8k Epoxy Coated NTC Thermistor 10K 25 C For Automotive Seat Heater

5k 8k Epoxy Coated NTC Thermistor 10K 25 C For Automotive Seat Heater

Brief Introduction:

Generally FEP wire, the color blue, yellow, green, etc. Its resistance value R25℃=5kΩ&8kΩ&10kΩ, B25/85=3988k&B25/85=3990k. This seat heater thermistor sensor is mainly used for temperature monitoring in the automotive seat heater.

Features:

Comply with RoHS standard

Wide Operating temperature range: -40℃~125℃

Application:

Automotive Seat heater

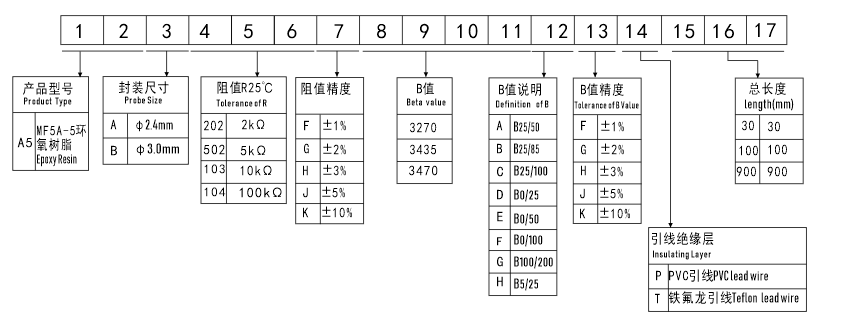

Part Number Code:

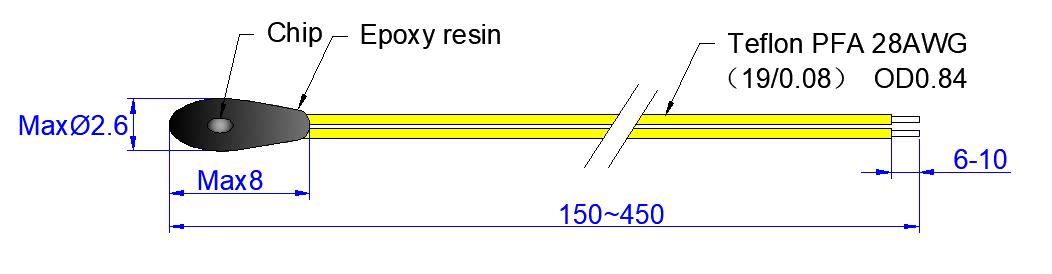

Structure and Dimensions:

1	Chip	NTC Chip	1	/
2	Encapsulation	Epoxy resin	1	/
3	Cable	PFA 28AWG (19/0.08) OD0.84 or PFA 28AWG (19/0.08) OD0.65	2	/

Standard packing (inner packing): 500pcs/polybag

Electrical Specification:

Rec. at 25℃(kΩ)	Beta value	(In air) Pmax(mW)	δ(mW/℃)	Thermal time constant τ(sec.)	Operating Temperature Range TL-TH(℃)	Total length L(mm)
1	B25/85=3435	Approx.60	Max.3.0	Max.20	-40℃~125℃ ( wire)	13.5~1000
1.5	B25/50=3850
1.5	B25/50=3935
2	B25/85=3550
2	B25/85=3935
2.08	B25/85=3580
2.2	B25/50=3935
3	B25/50=3950
5	B25/50=3470
5	B25/50=3950
8	B25/100=3988
10	B25/85=3435
10	B25/50=3470
10	B25/50=3935
10	B25/50=3950
20	B25/50=3950
47	B25/50=3950
50	B25/50=3950
50	B25/50=4200
100	B25/50=4200
200	B25/50=4200
500	B25/50=4450
1000	B25/85=4600

Operation Notice:

1. Application: Temperature measure and control；　

2. The current flowing through the NTC is controlled within the Pmax range to avoid the measurement error caused by the self-heating of the component.

3. Avoid excessive heat shock, The hot air blow should beat at least 30mm to the probe in case a heat-shrink protection tube needs to be attached.

4. Storage Temperature -10℃～40℃,≤75%RH； Avoid a corrosive gas and sunlit environment; After opening the package, it needs to be sealed again.
