Home Appliances Probe Temperature Sensor

Cylindrical Housing Copper Shell NTC Probe Temperature Sensor For Home Appliances And Industrial Controller

Brief Introduction:

MFT series cylindrical housing temperature probe is manufactured by Hefei Jingpu Sensor Technology Co., Ltd. It consists of lead wires (PVC insulated wire, insulated wire, XLPE insulated wire), an NTC resistor, and cylindrical housing ( stainless steel tube, copper tube, and plastic housing), and a connector. The optional resistance value range from 0.3kΩ to 2000kΩ, and the beta value range from 2500K to 4500K. The cylindrical housing temperature probe is widely used in the field of home appliances such as A/C, refrigerators, and industrial intelligent controllers.

Features:

Comply with RoHS standard

PVC insulated lead wires series Operating temperature range: -20℃~105℃

insulated lead wires series Operating temperature range: -40℃~150℃

Application:

Home appliances (A/C, refrigerator, etc)

Industrial intelligent controller

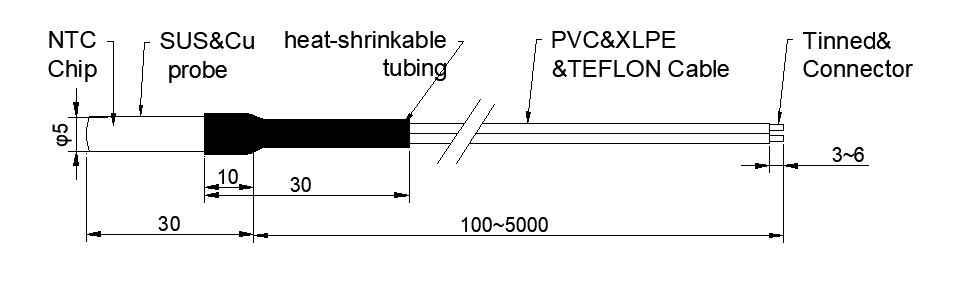

Structure and Dimensions:

1	Chip	NTC Chip	1	/
2	Encapsulation	Epoxy resin	1	/
3	Cable	PVC&XLPE& Cable	2	/
4	Probe	SUS & Cu Probe or SUS & Plastic & Cu Probe	1
5	Connector	Tinned Connector	2

Electrical Specification:

Rec. at 25℃(kΩ)	Beta value	(In air) Pmax(mW)	δ(mW/℃)	Thermal time constant τ(sec.)	Operating Temperature Range TL-TH(℃)	Total length L(mm)
1	B25/85=3435	Approx.60	Max.3.0	Max.20	-40℃~125℃	8~100
1.5	B25/50=3850
1.5	B25/50=3935
2	B25/85=3550
2	B25/85=3935
2.08	B25/85=3580
2.2	B25/50=3935
3	B25/50=3950
5	B25/50=3470
5	B25/50=3950
8	B25/100=3988
10	B25/85=3435
10	B25/50=3470
10	B25/50=3935
10	B25/50=3950
20	B25/50=3950
47	B25/50=3950
50	B25/50=3950
50	B25/50=4200
100	B25/50=4200
200	B25/50=4200
500	B25/50=4450
1000	B25/85=4600
