2K Epoxy Coated NTC Thermistor Temperature Sensor 3550K

Brief Instruction:

This product is an epoxy resin encapsulated head, the leads are tinned copper clad steel, and the chip parameters are generally R25℃=2kΩ, B25/85=3550K or B25/85=3580K. The control of the resistance accuracy is mainly at 80℃~ 100℃, with good replaceability.

Features:

Comply with RoHS standard

good interchangeable

Operating temperature range: -40℃~125℃

Application:

It is used for the measurement of automobile fuel temperature, water temperature, intake air temperature, engine temperature, etc.

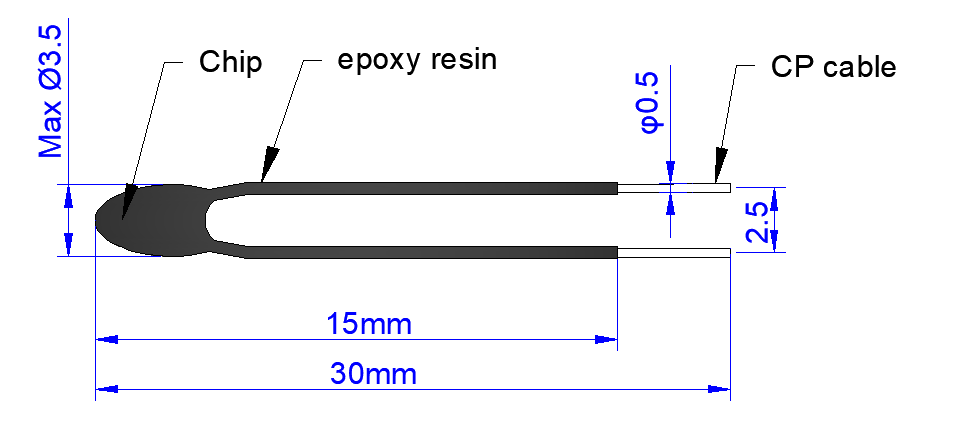

Structure and Dimensions:(unit: mm)

Electrical Specification:

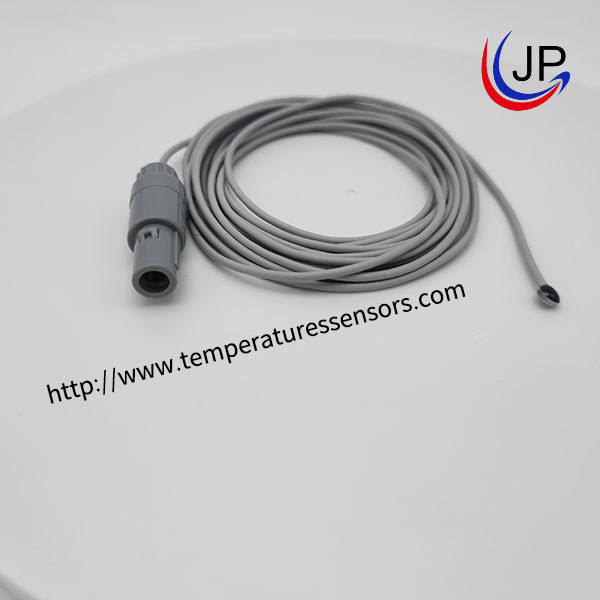

Other Product Images:

Hefei Jingpu Sensor Technology Co., Ltd. is a national high-tech enterprise integrating R&D, production, and sales of thermistors and temperature sensors which was established in 2014 and obtained IS09001 Certification in 2015, IS013485 Certification in 2018, CE Certification for medical products in 2019, and Medical Device License and Registration Certificate in 2020.

Our products include various epoxy-encapsulated and glass-encapsulated thermistors and various shell-encapsulated temperature sensors that are widely used in the medical industry (such as monitors, medical equipment, bacterial incubators, medical refrigerators, etc.), smart wearable devices, automobiles (such as water temperature, oil temperature, air conditioner, filter, intake pressure temperature, steering wheel, rearview mirror, tyre, battery pack, etc.), home appliances (such as air conditioner, refrigerator, electric water heater, induction cooker, electronic calendar, etc.), portable power bank, fire alarm, meteorology, ocean, etc.)
