R62 20.92K B25/50 4200K Epoxy Coated Thermistor Sensor

Brief Introduction:

This product is made of NTC element, epoxy resin, and bare wire. It’s manufactured by Hefei Jingpu Sensor Technology Co., Ltd.

Features:

Small Epoxy bead

Good stability, fast response time

Operation temperature range: -40℃~125℃

R62℃=20.92kΩ±3%, B25/50=4200k±2%

Application:

Fire-fighting alarmer

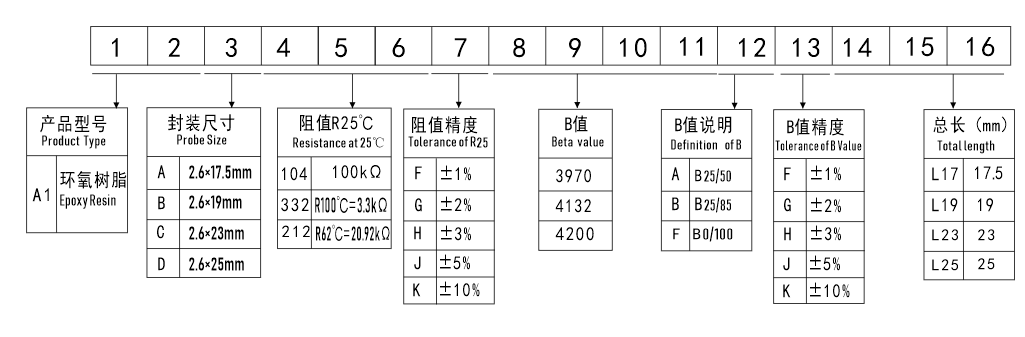

Part Number Code:

Structure and Dimensions:

Electrical Specification:

Other Product Images:

Hefei Jingpu Sensor Technology Co., Ltd. is a national high-tech enterprise integrating R&D, production, and sales of thermistors and temperature sensors which was established in 2014 and obtained IS09001 Certification in 2015, IS013485 Certification in 2018, CE Certification for medical products in 2019, and Medical Device License and Registration Certificate in 2020.

Our products include various epoxy-encapsulated and glass-encapsulated thermistors and various shell-encapsulated temperature sensors that are widely used in the medical industry (such as monitors, medical equipment, bacterial incubators, medical refrigerators, etc.), smart wearable devices, automobiles (such as water temperature, oil temperature, air conditioner, filter, intake pressure temperature, steering wheel, rearview mirror, tyre, battery pack, etc.), home appliances (such as air conditioner, refrigerator, electric water heater, induction cooker, electronic calendar, etc.), portable power bank, fire alarm, meteorology, ocean, etc.)
