10kΩ3950k ABS 6x30 Probe NTC Temperature Sensor For Refrigerators

Product Description:

ABS probe NTC temperature sensor for refrigerators, the probe is the most common used ABSΦ6*30mm shell in the market, the wire is UL2464 24AWG 80℃ wire, the parameters are generally 5KΩ, 10kΩ, and the control temperature is about 0℃.

Features:

Comply with RoHS standard

PVC insulated lead wires series Operating temperature range: -40℃~80℃

Stable performance

Accurate temperature measurement

Accurate low-temperature control

R25℃=10kΩ

R0℃=32.51kΩ

B25/50=3950k

Application:

Refrigerator, Freezer

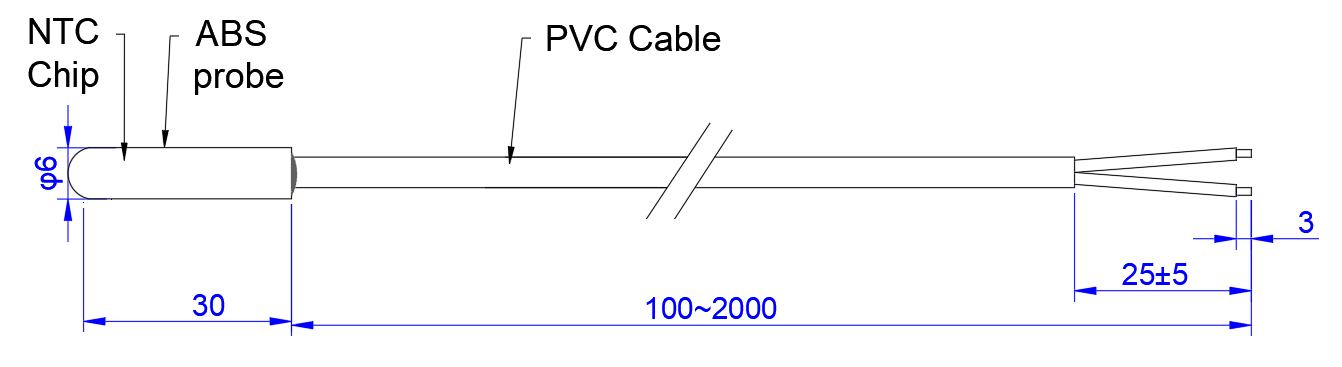

Structure and Dimensions(mm):

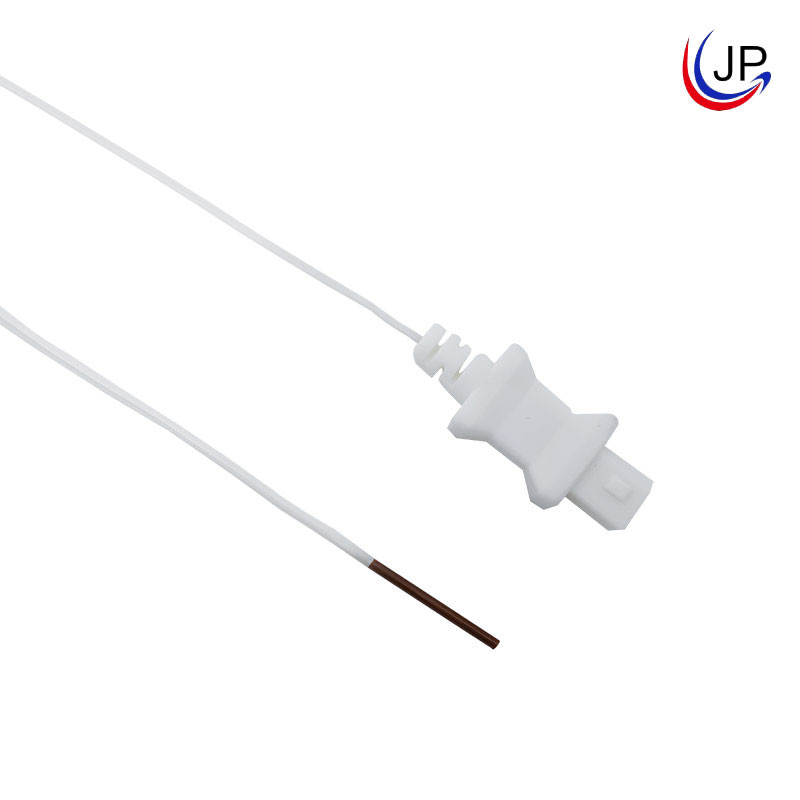

Other Product Images:

Hefei Jingpu Sensor Technology Co., Ltd. is a national high-tech enterprise integrating R&D, production, and sales of thermistors and temperature sensors which was established in 2014 and obtained IS09001 Certification in 2015, IS013485 Certification in 2018, CE Certification for medical products in 2019, and Medical Device License and Registration Certificate in 2020.

Our products include various epoxy-encapsulated and glass-encapsulated thermistors and various shell-encapsulated temperature sensors that are widely used in the medical industry (such as monitors, medical equipment, bacterial incubators, medical refrigerators, etc.), smart wearable devices, automobiles (such as water temperature, oil temperature, air conditioner, filter, intake pressure temperature, steering wheel, rearview mirror, tyre, battery pack, etc.), home appliances (such as air conditioner, refrigerator, electric water heater, induction cooker, electronic calendar, etc.), portable power bank, fire alarm, meteorology, ocean, etc.)
