Electric Kettle NTC Probe Sensor Small Home Appliances Epoxy Resin Encapsulated

Brief Introduction:

This product is generally used in electric kettles and other small home appliances. The probe of the product is stainless steel, the wire is a high-temperature resistance wire with a temperature resistance of 200°C, and the parameters are R25°C=100KΩ, B25/50=3950K (can also be customized according to customers’ requirements), using epoxy resin encapsulation, the wire tail can be equipped with corresponding connectors according to customer requirements.

Features:

Comply with RoHS standard

Operating temperature range: -40℃~125℃

Easy to install

High performance

Stainless steel probe

Application:

Electric kettle and small home appliances

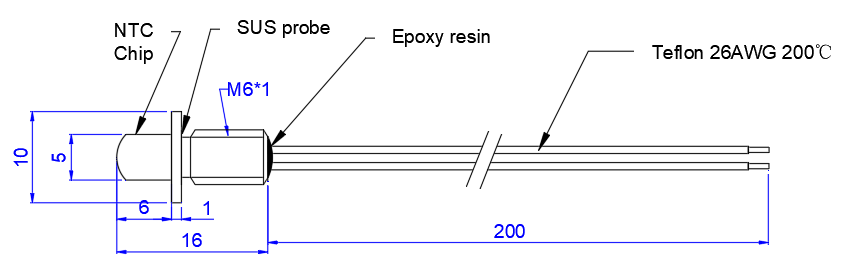

Structure and Dimensions:(unit: mm)

Electrical Specification:

Other Product Images:
