R25 10kΩ B25 / 85 3435K Battery Terminal NTC Temperature Sensor For EV Battery

Brief Introduction:

The item is a temperature sensor for EV Electric Battery. Typical applications include battery control systems in EV cars. EV battery temperature sensor consists of an NTC chip thermistor mounted in an Aluminum probe (AL Probe), with insulated flexible wire (XLPE insulated wire UL4411 125℃ & UL4413 150℃)and terminals. One standard resistance value and beta value: R25℃= 10kΩ and B25/85=3435k.

Features:

Comply with RoHS standard

Operating temperature range: -40℃~125℃(UL4411 24AWG)

Precise temperature measurements and long-term stability

Good and long-term stability

Sensing element electrically isolated from tag

Aluminum probe

AC 1500V 1mA 1S

Application:

EV Battery Temperature Sensor

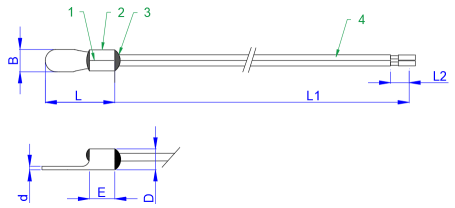

Structure and Dimensions:

Hefei Jingpu Sensor Technology Co., Ltd. is a national high-tech enterprise integrating R&D, production, and sales of thermistors and temperature sensors which was established in 2014 and obtained IS09001 Certification in 2015, IS013485 Certification in 2018, CE Certification for medical products in 2019, and Medical Device License and Registration Certificate in 2020.

Our products include various epoxy-encapsulated and glass-encapsulated thermistors and various shell-encapsulated temperature sensors that are widely used in the medical industry (such as monitors, medical equipment, bacterial incubators, medical refrigerators, etc.), smart wearable devices, automobiles (such as water temperature, oil temperature, air conditioner, filter, intake pressure temperature, steering wheel, rearview mirror, tyre, battery pack, etc.), home appliances (such as air conditioner, refrigerator, electric water heater, induction cooker, electronic calendar, etc.), portable power bank, fire alarm, meteorology, ocean, etc.)
