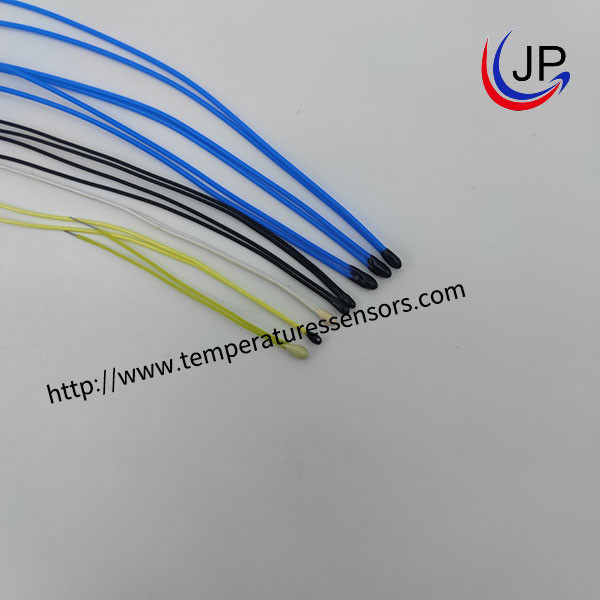

5Kohm Glass Bead Thermistor 3470K Industrial Devices

5Kohm Glass Bead Thermistor 3470K Industrial Devices

Brief Introduction:

This product is an MF58 series glass bead temperature sensor. As one of NTC thermistor sensors, glass coating NTC thermistor consists of glass bead and thinner dumet wire. High-temperature resistance is an important feature. Glass coating NTC thermistor is widely used for electronics of vehicles, industrial devices, home appliances, etc.

Features:

Glass encapsulation

High temperature resistant

Operating temperature range: -40℃~250℃

R25=5KΩ±1%, B25/50=3470±1%

Application:

Home appliances

Part Number Code:

For example: B8103F3435BF: MF58 series NTC thermistor, R25℃=5kΩ±1%, B25/85=3470k±1%;

Structure and Dimensions:

Standard packing (inner packing): 500pcs/polybag

Electrical Specification:

Product Specification	Rec. at 25℃(KΩ)	Beta value	(In air) Pmax(mW)	δ (mW/℃)	thermal time constant τ(sec.)	Operating Temperature Range TL-TH(℃)	Total length L(mm)
B8202□3470A	2	B25/85=3470	Approx.20	Approx.1.0	Max.15	-40~250	60
B8202□3830A	2	B25/85=3977
B8103□3470A	5	B25/50=3470
B8502□3950A	5	B25/85=3950
B8103□3435B	10	B25/85=3435
B8103□3470A	10	B25/50=3470
B8103□3580A	10	B25/50=3580
B8103□3630B	10	B25/50=3950
B8103□3950A	10	B25/50=3950
B8103□3977B	10	B25/50=3950
B8503□3950A	50	B25/50=3950
B8104□3950A	100	B25/50=3950
B8104□3990A	100	B25/50=3990
B8104□4132B	100	B25/85=4132
B8104□4200A	100	B25/50=4200
B8200R102□4537G	R200℃=1	B100/200=4537

Operation Notice:

1. The current flowing through the NTC is controlled within the Pmax range to avoid the measurement error caused by the self-heating of the component.

2. Avoid excessive heat shock, The hot air blow should beat at least 30mm to the probe in case a heat-shrink protection tube needs to be attached.
