2K 3499 PI Max 0.5mm Medical Temperature Sensor Micro Epoxy Resin Encapsulated

Brief Introduction:

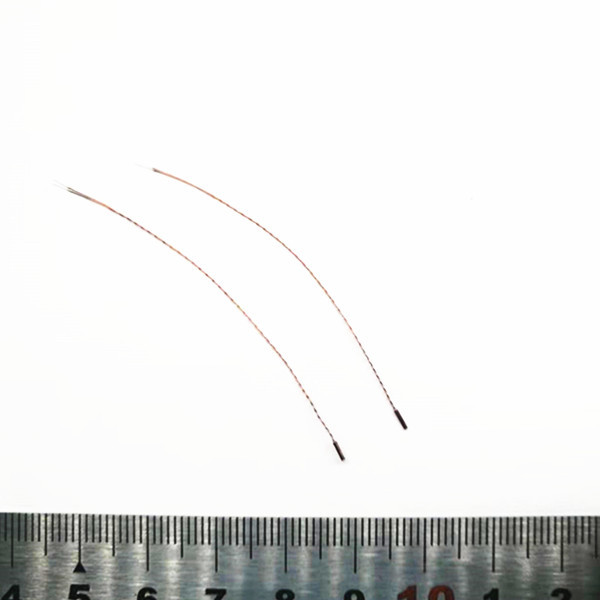

JP404 medical temperature sensor is a miniature NTC medical temperature sensor. It is covered with a polyimide tube with an outer diameter of Max φ0.5. The inside of the sleeve is filled with epoxy resin, and the lead is covered by OD0.12*2 enameled wire.

Features:

Miniature

Fast Response

Comply with RoHS

Operating Temperature Range: 0℃~60℃

Measurement Tolerance: 25℃~45℃ ±0.1℃

R25=10kΩ(±0.1℃)

B25/85=3499±0.5%

Application:

Applied for urinary catheters, laboratory animal research, cardiothoracic surgery, etc.

Structure and Dimensions:(Unit: mm)

Electrical Specification:
