2.252K 3976 PI Max 0.5mm Epoxy NTC Chip Thermistor

Brief Introduction:

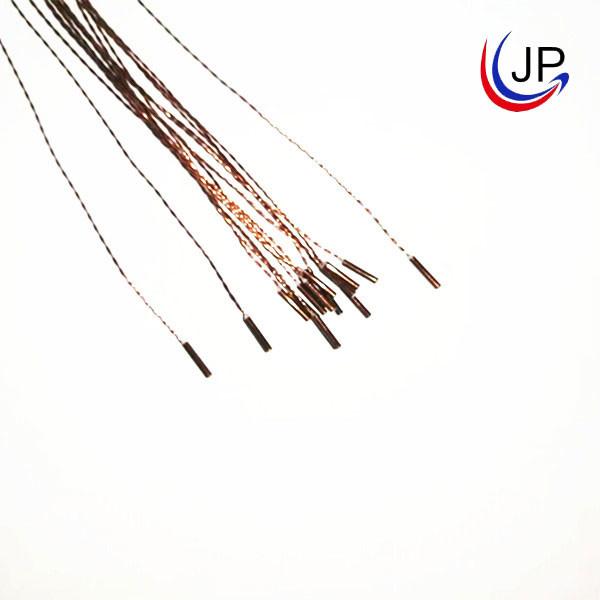

JP404 medical temperature sensor, this product is a miniature medical temperature sensor NTC thermistor. After the miniature chip is soldered, it is wrapped with a polyimide tube with an outer diameter of Max φ0.5. The inside of the sleeve is filled with epoxy, and the lead is covered by OD0.12*2 enameled wire.

Features:

Comply with RoHS

Miniature

Fast Response

Operating Temperature Range: 0℃~60℃

Measurement Tolerance: 25℃~45℃ ±0.1℃

R25=2.252kΩ(±0.1℃)

B25/85=3976±0.5%

Application:

Applied for urinary catheters, cardiothoracic surgery, laboratory animal research, etc.

Structure and Dimensions:(Unit: mm)

Electrical Specification:
