2.252KΩ 3976 Polyimide Max 1.0mm Epoxy Resin Encapsulated Micro NTC Chip Thermistor

Brief Introduction:

This product is a miniature medical temperature sensor NTC thermistor. Once the miniature chip is welded, it is encapsulated with a polyimide tube with an outer diameter of Maxφ1.0. The inside of the tube is filled with epoxy resin, and the lead is encapsulated by OD0.12*2. enamelled wire.

Features:

Comply with RoHS

Miniature

Fast Response

Operating Temperature Range: 0℃~60℃

Measurement Tolerance: 25℃~45℃ ±0.1℃

R25=2.252kΩ(±0.1℃)

B25/85=3976±0.5%

Application:

Applied for urinary catheters, cardiothoracic surgery, laboratory animal research, etc.

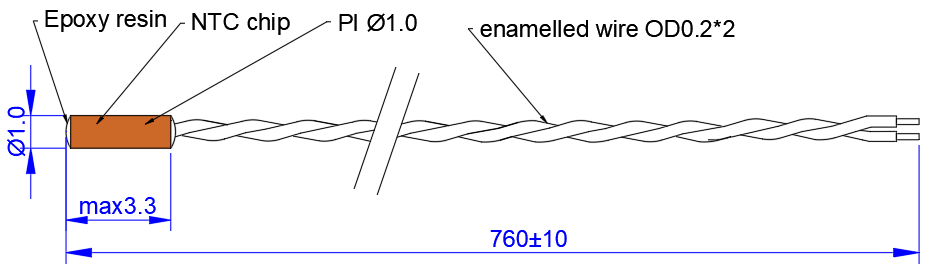

Structure and Dimensions:(Unit: mm)
