Human Body Cavity Temperature Sensor For Medical Monitoring
Equipment
Brief Instruction:

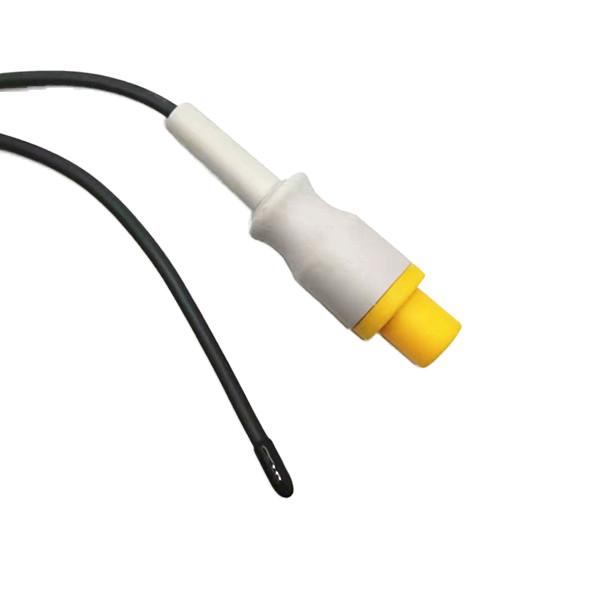

Medical human body cavity temperature sensor ( esophgeal/ rectal
temperature probe) is used for human body cavity temperature
measurement, Used for the patient monitors. The sensor be composed
of epoxy bead and 2 pin aviation plug. Meanwhile, we also accept
the customized plug or connector. The rated resistance value
2.252kΩ or 10kΩ. The measured temperature tolerance within ±0.1℃,
compatible for replacement Mindray series sensor. CE certification
Features:
Epoxy encapsulation
Reusability
Temperature tolerance
(25~45)℃±0.1℃
Operating temperature range: 0℃~50℃
Application:
Suitable for medical monitoring equipment
Structure and Dimensions:(Unit:mm)
| NO. | Name | Material Specification | QTY. | Remarks |
| 1 | Chip | NTC chip | 1 | / |
| 2 | Probe | Epoxy Resin | 1 | gray |
| 3 | Wire | 24AWG/1C OD3.1 Shielded round sheath wire | 1 | gray |
| 4 | Plug | 2 pin aviation plug | 1 | Gray+Yellow |
Standard packing (inner packing): 1 pcs/polybag
Operation Notice
1. Application:Temperature measure ；
2. The current flowing through the NTC is controlled within the
Pmax range to avoid the measurement error caused by the
self-heating of the component.
3. Avoid excessive heat shock,The hot air blow should beat least
30mm to the probe in case heat shrink protection tube need to be
attached.
4. Storage Temperature -10℃～40℃,≤75%RH；Avoid in a corrosive gas and
sunlit environment; After opening the package, it needs to be
sealed again.
5. According to the structure of Glass coating NTC thermistor, when
end user install, to avoid the epoxy head subjected too much
tensile force and bending force from the lead wire,The lead wire
shall be controlled at a bending point or a force point on a lead
wire 6mm or less below the sealing head.So as not to hurt the chip,
resulting in resistance drifting and even open circuit, esepcially
when the component is heated.
