Flange Type Waterproof Ntc Temperature Probe For Household Appliances

Brief Instruction (Product Description):

The flange type temperature probe apply for household appliances. It is consist of the insulated wire (FEP wire,PVC wire,XLPE insulated wire), NTC chip and epoxy resin,waterproof stainless steel 304 shell. The optional resistance value range 0.3kΩ to 2000kΩ, and beta value range 2500K to 4500K.

Features:

Comply for ROHS standard

FEP insulated lead wires series

Operating temperature range: -40℃~200℃

PVC insulated lead wires series

Operating temperature range: -20℃~105℃

Good stability and reliability

Easy to install and manipulate as the sealing can be done according to environment

Accurate testing can reflect temperature change precisely.

Application:

Household appliances: Induction cooker, micro-wave oven, electric kettle etc.

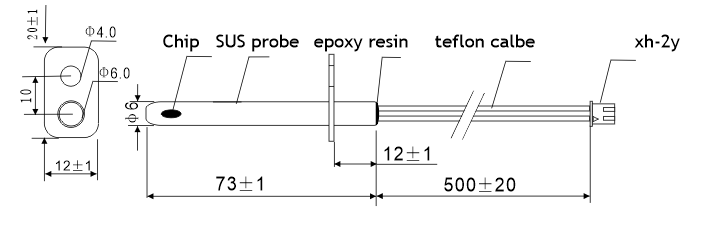

Structure and Dimensions:(unit:mm)

Electrical specification:

Product picture:

Standard packing (inner packing): 1pcs~100pcs/polybag

Operation Notice

1. Application:Temperature measure and control；　

2. The current flowing through the NTC is controlled within the Pmax range to avoid the measurement error caused by the self-heating of the component.

3. Storage Temperature -10℃～40℃,≤75%RH；Avoid in a corrosive gas and sunlit environment; After opening the package, it needs to be sealed again.
