Cylindrical Housing Temperature Probe For Household Appliances And Industrial

Ask Lasest Price
Brand Name :	Jingpu Brand
Model Number :	MFT
Certification :	CE,ROHS,ISO
Price :	USD 0.1-5 /PCS
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	200 Million per Year
Delivery Time :	2-7days

Add to Cart

Product Details
Company Profile

Cylindrical Housing Temperature Probe For Household Appliances And Industrial

Cylindrical Housing Temperature Probe For Household Appliances And Industrial

Brief Instruction:

MFT series cylindrical shell temperature probe by Hefei Jingpu Sensor Technology Co., LTD. It consists of leads (PVC insulated wire, FEP insulated wire, crosslinked polyethylene insulated wire), NTC resistors, cylindrical housing (stainless steel pipe, copper pipe and plastic housing) and connectors. The optional resistance ranges from 0.3 kω to 2000 kω, and the beta ranges from 2500K to 4500K. Cylindrical shell temperature probe is widely used in air conditioning, refrigerators, industrial intelligent controller and other household appliances.

Features:

Meets ROHS standards

PVC insulated lead wires series Operating temperature range: -20℃~105℃

FEP insulated lead wires series Operating temperature range: -40℃~150℃

Application:

Household appliances (A/C, refrigerator etc)

Industrial intelligent controller

Structure and Dimensions:

Electrical specification:

Rec. at 25℃(kΩ)+A2:G25+A2:G25	Beta value	(In air)Pmax(mW)	δ(mW/℃)	thermal time constant τ(sec.)	Operating Temperature Range TL-TH(℃)	Total length L(mm)
1	B25/85=3435	Approx.60	/	/	-40℃~125℃	100~5000
1.5	B25/50=3850
1.5	B25/50=3935
2	B25/85=3550
2	B25/85=3935
2.08	B25/85=3580
2.2	B25/50=3935
3	B25/50=3950
5	B25/50=3470
5	B25/50=3950
8	B25/100=3988
10	B25/85=3435
10	B25/50=3470
10	B25/50=3935
10	B25/50=3950
20	B25/50=3950
47	B25/50=3950
50	B25/50=3950
50	B25/50=4200
100	B25/50=4200
200	B25/50=4200
500	B25/50=4450
1000	B25/85=4600

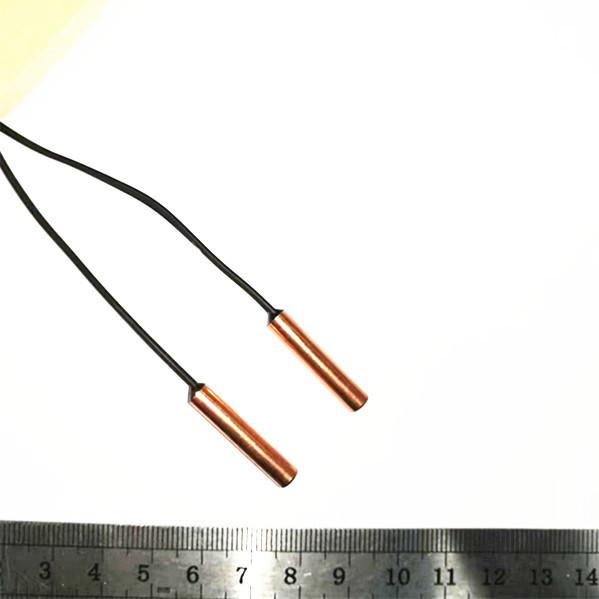

Product picture:

Standard packing (inner packing): 1pcs~100pcs/polybag
