Surface Mounting Temperature Sensor For EV / HEV Bus Bars And Battery Covers

Surface Mounting Temperature Sensor EV OR HEV Bus Bars and Battery Covers

Brief Instruction:

Surface mounting temperature sensor be consist of the insulated wire (FEP cable & PVC cable,XLPE insulated wire), NTC chip and epoxy resin, ring lug M2/M4/M5/M6. The optional resistance value range 0.3kΩ to 2000kΩ, and beta value range 2500K to 4500K. These surface mount temperature sensor be widely used for battery pack, solar inverter, YF, welding machine, control cabinet etc.

Features:

Comply for ROHS standard

Miniature designed

Interchangeability

Surface mount temperature measurement

PVC insulated lead wires series

Operating temperature range: -20℃~105℃

PTFE insulated lead wires series

Operating temperature range: -40℃~150℃

Sensing element electrically isolated from tag

Eyelets to fit M3, M4&M5 screw sizes

Range of wire lengths 1.97 in to 78.74in (50mm to 2000mm)

Application:

EV/HEV Bus Bars

Battery Covers

Power Distribution

Thermal Management

Heat Sinks

Panel Enclosures

Inverters

Welding machine

Control cabinet

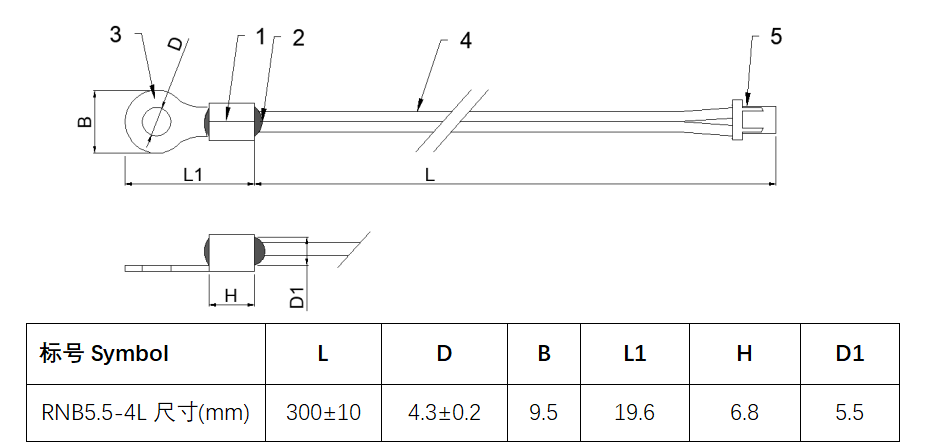

Structure and Dimensions:

Electrical specification:

Rec. at 25℃(kΩ)	Beta value	(In air)Pmax(mW)	δ(mW/℃)	thermal time constant τ(sec.)	Operating Temperature Range TL-TH(℃)	Total length L(mm)
1	B25/85=3435	Approx.60	/	/	-40℃~125℃	100~5000
1.5	B25/50=3850
1.5	B25/50=3935
2	B25/85=3550
2	B25/85=3935
2.08	B25/85=3580
2.2	B25/50=3935
3	B25/50=3950
5	B25/50=3470
5	B25/50=3950
8	B25/100=3988
10	B25/85=3435
10	B25/50=3470
10	B25/50=3935
10	B25/50=3950
20	B25/50=3950
47	B25/50=3950
50	B25/50=3950
50	B25/50=4200
100	B25/50=4200
200	B25/50=4200
500	B25/50=4450
1000	B25/85=4600

Product picture:

Six advantages - make the work more accurate, make the quality better
Original manufacturing, affordable
Fine craft, exquisite technology
Strict quality control, precision assurance
Rapid response, rapid delivery
Support customization, non-standard customization
Enterprise shop, can be invoiced
