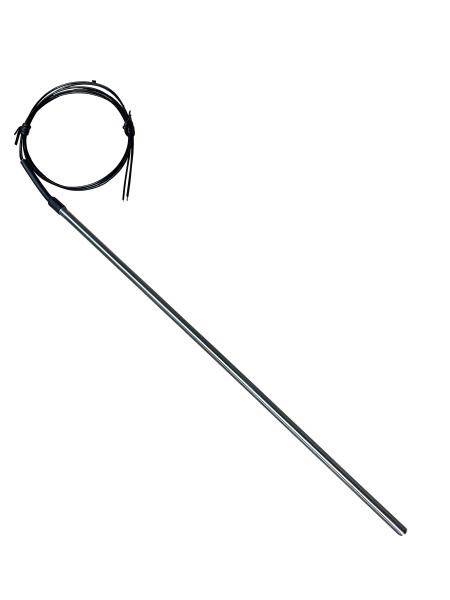

NTC Temperature Sensor with Super Long Stainless Steel Probe

Brief Instruction:

It consists of lead wires (PVC insulated wire, FEP insulated wire, XLPE insulated wire), NTC resistor, cylindrical housing ( stainless steel tube, copper tube and plastic housing) and connector. R25=10KΩ±1%,B25/50=3950k±1%(The optional resistance value range from 0.3kΩ to 2000kΩ, and beta value range from 2500K to 4500K).

Features:

Comply for RoHS standard

PVC insulated lead wires series

Operating temperature range: -20℃~105℃

FEP insulated lead wires series

Operating temperature range: -40℃~150℃

SUSφ5*200mm

Application:

Industrial intelligent controller

Industrial control

Structure and Dimensions:

Specification:

Temperature sensor series ultra-long probe temperature sensor is suitable for measuring the field temperature, sensor equipped with ultra-long probe, can be used for temperature measurement in various places, such as industrial equipment.
Product performance in line with ISO9001 and ISO13485 standards; The shape design conforms to the requirements of the temperature sensor;
Probe size, model can be customized;
The product can choose double protective tube protective encapsulation;
With good shock and impact resistance;
