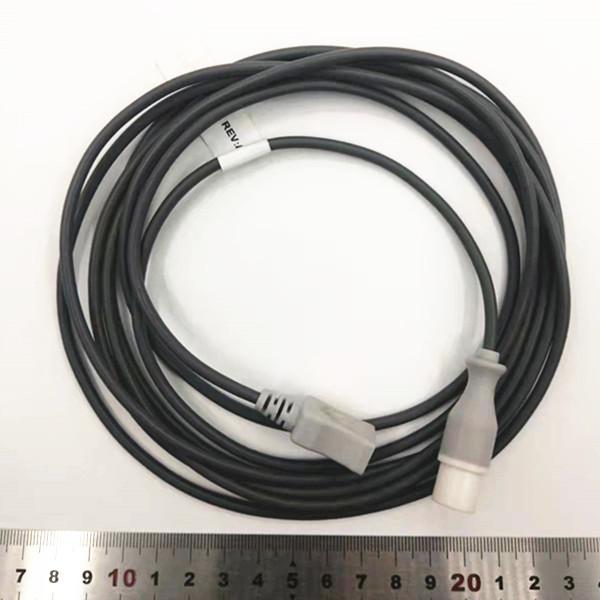

Disposable Adult Body Cavity Temperature Probe For Medical Monitor And Icu Ward

Brief Instruction:

The project is a disposable medical temperature sensor, which is a body cavity temperature probe for children. Resistance value 2.252 kΩ. The temperature tolerance is (25℃~45℃)±0.1℃. It can be replaced by YSI400 series products.

Features:

Disposable

PVC sleeve

Disposable Tolerance(25~45)℃±0.1℃

Operating temperature range: 0℃~50℃

12Fr(OD4.0)

Transfer wiring is available

Application:

Suitable for medical monitor, body monitor used in ICU ward, emergency room, operating room, continuous monitoring of the patient's body temperature

For the measurement of body cavity temperature in adults

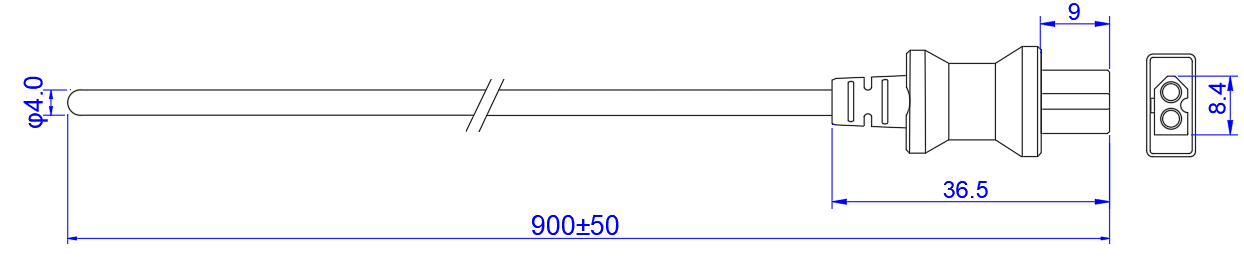

Structure and Dimensions:(Unit:mm)

Ordering instructions
When ordering NTC temperature sensor, please inform us of the following parameters:
1. Usage and working environment (whether it needs to be waterproof, acid or alkali resistant or other)?
2. What is the specific value of R, K?
3. How much K is the value of B?
4, accuracy requirements (1% or 2%), etc.?
5. Operating temperature range?
6, the shell material (stainless steel, copper, copper nickel plating, aluminum, ABS, PVC, epoxy resin, etc.)?
7. The specific size of the shell?
8, wire material and length (common wire PVC, silica gel, teflon line),
9. How to deal with the end of the wire (hanging tin or connector)?
