Versatile Ntc Temperature Sensor For Household Applicances

Brief Instruction (Product Description):

This product is generally used in electric kettles and other small household appliances. The probe is made of stainless steel and the wire is UL4413 26AWG XLPE 150℃ irradiation line. The resistance parameter is generally 50KΩ,100KΩ,B25/50=3950K(also can be customized according to customer requirements) use epoxy resin packaging, wire tail can be equipped with the corresponding connector according to customer requirements (PH-2Y).

Features:

Respond quickly

Comply for ROHS standard

Operating temperature range: -40℃~125℃

Easy to install

Stainless steel probe

Good stability

Application:

Electric kettles, water heaters and other small household appliances

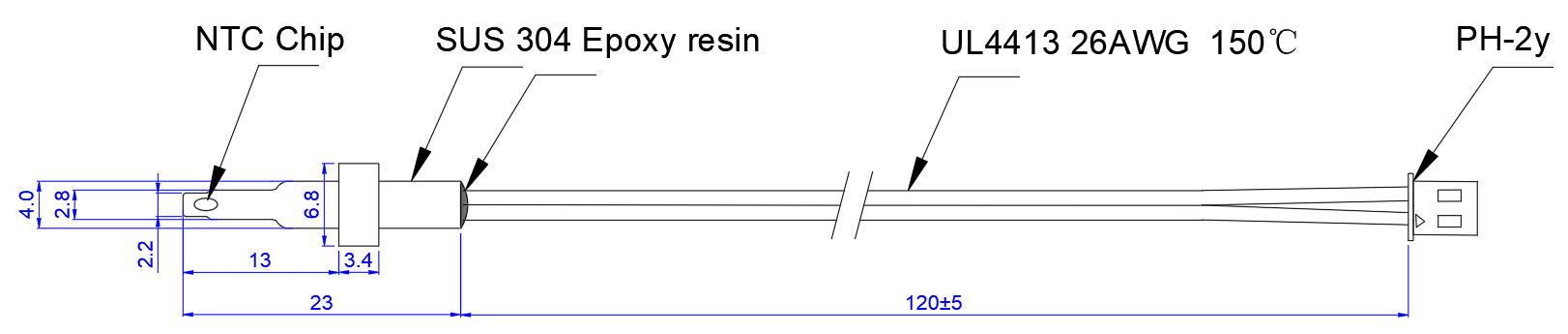

Structure and Dimensions:(unit:mm)

Product customization Notice:
(1) Resistance value of the product (nominal resistance value of 25℃, or other resistance)
(2) Product accuracy (1%-5%)
(3) B-value coefficient of the product
(4) Wire type and length (color, length, temperature resistance requirements)
(5) Wire tail specifications (tin immersion, socket plug-in, special specifications)
(6) Probe specifications and materials (copper plated nickel, red copper, stainless steel, ABS rubber shell)
(7) Use temperature range
