Glass Coating 1k Ntc Thermistor For Smart Farm And Automobile

Brief Instruction:

As one NTC thermistor sensor, glass coating NTC thermistor is made of glass bead, thinner dumet wire. Its feature is high temperature resistance. 1k NTC Thermistor for Industrial Device is widely apply for automotive electronic, home appliance, industrial device etc.

Features:

Glass encapsulation

High temperature resistant

Operating temperature range: -40℃~300℃

R200℃=1KΩ±5%,B100/200=4537±3%

Glass probe 1.3mm

Scope of Application:

Home appliance

Automotive electronic

Industrial device etc

Induction cooker

The microwave oven

Electric oven

Scope of application
Wireless charging, mobile power supply, charging power supply, etc.
Consumer electronics such as charging bank, intelligent thermos cup, water cup and hand warmers.

Part Number Code:

Structure and Dimensions:

product picture/images:

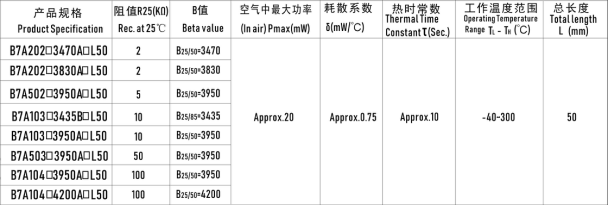

Electrical specification:

Standard packing (inner packing): 500pcs/polybag

Operation Notice

1.Application:Temperature measure and control；

2.The current flowing through the NTC is controlled within the Pmax range to avoid the measurement error caused by the self-heating of the component.

3.Avoid excessive heat shock,The hot air blow should beat least 30mm to the probe in case heat shrink protection tube need to be attached.
