Film Type Ntc Thermistor Temperature Sensor Width 3.6mm Overall Length 25mm

Brief Instruction:

Film type NTC thermistor is composed of NTC chip, phos-bronze bracket and polyimide film. Its thickness is around 0.60mm, the width of the film is 3.6mm, the total length is 25mm, this size of product resistance parameters are 10Kω 3435K, 10Kω 3977K, 100Kω 4200K.

Features:

Thin film type

Thin, fast response time

Operating temperature range: -40℃~100℃

Film width 3.6mm, overall length 25mm

Application:

Home appliances, computer, printer, battery pack

Part Number Code:

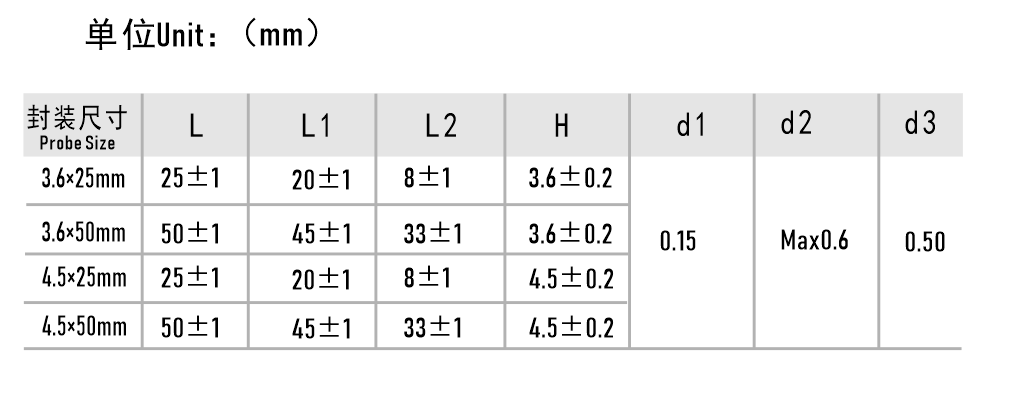

Structure and Dimensions:

Electrical specification:

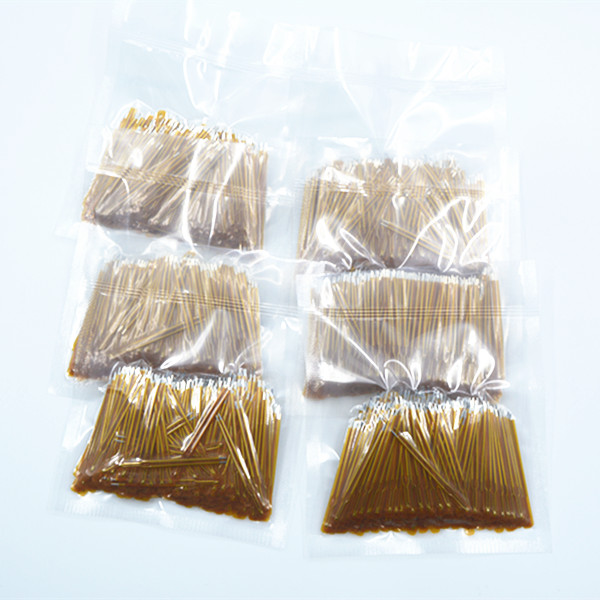

product picture/images:

Film type NTC thermistor

Note: According to customer's requirements, we can provide different resistance values and B-value precision for customization.
When measuring NTC thermistors, note the following:
· It cannot be measured in the air, because the temperature difference in the air is large, so the measurement is not accurate, resulting in accuracy deviation.
· A high-precision thermostatic tank is used for measurement. After the measured NTC is placed in the thermostatic tank, it can be measured only after the temperature of the thermostatic tank is stable. · The measurement voltage should be as low as possible to reduce the measurement error caused by NTC self-heating
· During high temperature measurement, the temperature of the constant temperature tank shall be corrected and checked with a thermometer
