Ge Bottom Freezer Refrigerator Ntc Temperature Sensor White

Ge Bottom Freezer Refrigerator Ntc Temperature Sensor Coolant Temp Sensor

Brief Instruction:

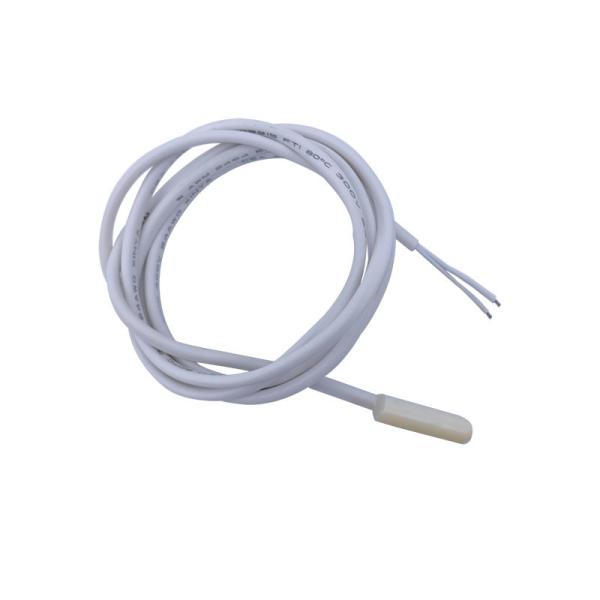

Refrigerator ABS probe NTC temperature sensor, probe for the market general ABS φ 7*25mm shell, wire for two core casing, parameters are generally 5Kω, 10K ω, control temperature at about 0℃.

Features:

Comply for ROHS standard

PVC insulated lead wires series Operating temperature range: -40℃~80℃

Stable performance

Accurate temperature measurement

Application:

Refrigerator

Structure and Dimensions(mm):

Electrical specification:

Rec. at 25℃(kΩ)	Beta value	(In air)Pmax(mW)	δ(mW/℃)	thermal time constant τ(sec.)	Operating Temperature Range TL-TH(℃)	Total length L(mm)
1	B25/85=3435	Approx.60	/	/	-40℃~125℃	100~5000
1.5	B25/50=3850
1.5	B25/50=3935
2	B25/85=3550
2	B25/85=3935
2.08	B25/85=3580
2.2	B25/50=3935
3	B25/50=3950
5	B25/50=3470
5	B25/50=3950
8	B25/100=3988
10	B25/85=3435
10	B25/50=3470
10	B25/50=3935
10	B25/50=3950
20	B25/50=3950
47	B25/50=3950
50	B25/50=3950
50	B25/50=4200
100	B25/50=4200
200	B25/50=4200
500	B25/50=4450
1000	B25/85=4600

Product application field
Automotive electronics, consumer electronics, medical industry, smart home, HVAC, household appliances, data loggers, smart energy, industrial automation, smart agriculture

Customization process
Personalized demand communication - solution confirmation - price confirmation - sensor sample testing - supply and demand contract signing - customized product production - interactive acceptance
