High Accuracy Ntc Thermistor Sensor With Small Epoxy Coating Bead 4.0mm

Brief Instruction:

10Kω high precision epoxy coated NTC Thermistor, with temperature measuring accuracy of 25℃~45℃±0.1℃, can be used for medical instruments and equipment.

Features:

R25℃=10kΩ

B0/50=3892k±0.5%

Temperature measuring accuracy 25℃~45℃±0.1℃

Copper tinned lead 0.25

Application:

Medical instruments, medical equipment

Structure and Dimensions:(unit:mm)

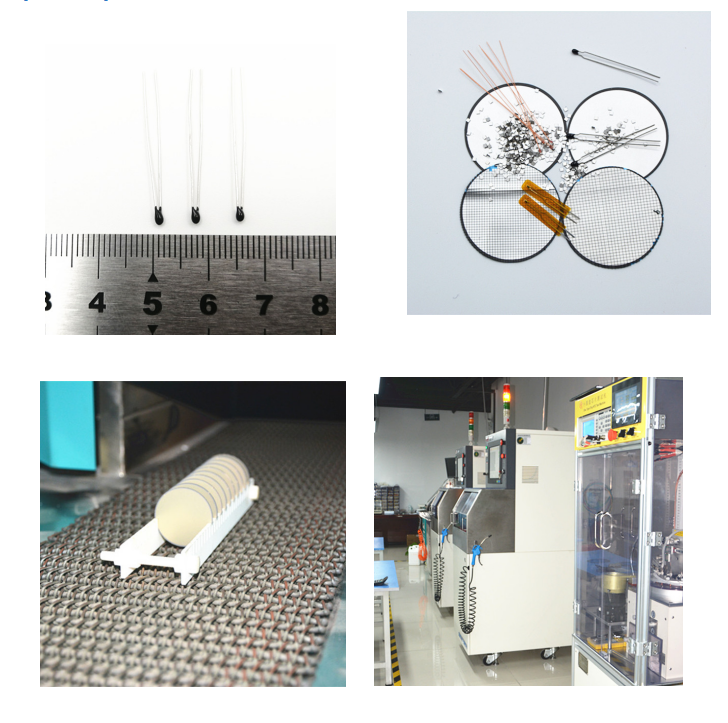

product picture:

Features:
1:MF5A-200 series products are NTC thermistor temperature sensors coated with epoxy resin in the same direction enameled wire
2: Wide resistance range: 1KΩ~200KΩ
3: high accuracy of resistance value and B value
4: good insulation, high reliability, small time constant
5: Small volume, fast reflection speed
6: Able to work steadily for a long time with good consistency
7: Operating temperature range :25~45℃

Hefei Jingpu Sensor Technology Co., Ltd. is a national high-tech enterprise integrating R&D, production, and sales of thermistors and temperature sensors which was established in 2014 and obtained IS09001 Certification in 2015, IS013485 Certification in 2018, CE Certification for medical products in 2019, and Medical Device License and Registration Certificate in 2020.

Our products include various epoxy-encapsulated and glass-encapsulated thermistors and various shell-encapsulated temperature sensors that are widely used in the medical industry (such as monitors, medical equipment, bacterial incubators, medical refrigerators, etc.), smart wearable devices, automobiles (such as water temperature, oil temperature, air conditioner, filter, intake pressure temperature, steering wheel, rearview mirror, tyre, battery pack, etc.), home appliances (such as air conditioner, refrigerator, electric water heater, induction cooker, electronic calendar, etc.), portable power bank, fire alarm, meteorology, ocean, etc.)
