ABS Probe NTC Temperature Sensor 10k B3950 Fridge Thermistor for A/C

Brief Instruction:

Refrigerator with ABS probe NTC temperature sensor, probe for the market general ABS φ 6*30mm shell, lead UL2464 24AWG 80℃ wire, the parameters are generally 5kω, 10Kω, control temperature at 0℃ or so.

Features:

Comply for ROHS standard

PVC insulated lead wires series

Operating temperature range: -40℃~80℃

Stable performance

Accurate temperature measurement

Accurate low temperature control

R25℃=10kΩ

R0℃=32.51kΩ

B25/50=3950k

Application:

Refrigerator, freezer

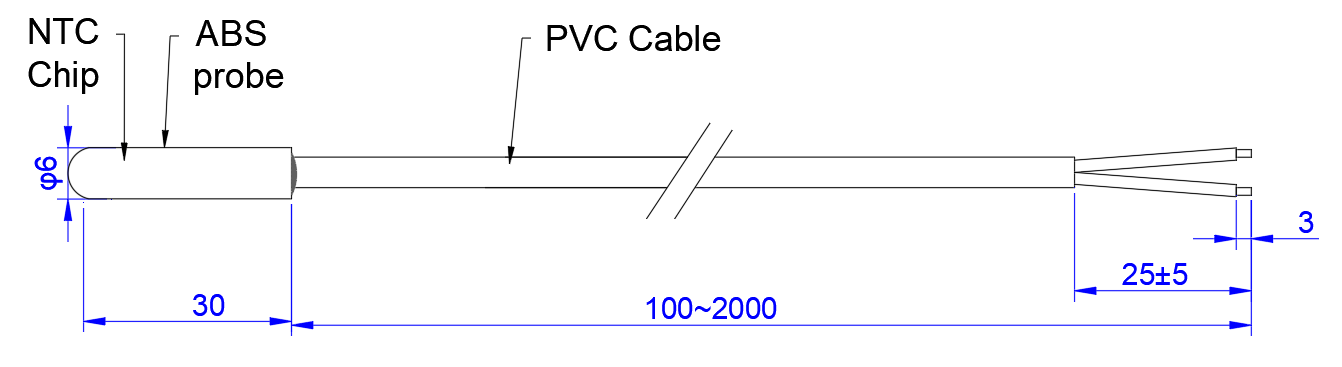

Structure and Dimensions(mm):

Customize--The following parameters are provided, tailored to your needs
Temperature range and application?
How many wire system output (commonly used 2 wire system /3 wire system /4 wire system, choose one of them)?
Accuracy requirements (1/3DIN 0.1°C, Grade A 0.15°C, Grade B 0.3°C)?
Shell material (stainless steel, copper, copper nickel plating, aluminum, ABS, PVC, epoxy resin, etc.)?
Shell tube diameter D and length L (diameter * length)?
Wire material and length (common wire PVC, silicone, Teflon wire)?
How to handle the end of the wire (hanging tin or with connector)?
