0.3k To 2000k Probe Temperature Sensor B Value 2500K To 4500K Thread Type Epoxy

Product Description:

It consists of the insulated wire ( wire,PVC wire,XLPE insulated wire), NTC chip, epoxy resin, and Nickel-plated copper M6 threaded probe. The optional resistance value range is from 0.3kΩ to 2000kΩ, and the beta value range is from 2500K to 4500K.

Features:

Comply with RoHS standard

insulated lead wires series Operating temperature range: -40℃~125℃

PVC insulated lead wires series Operating temperature range: -20℃~105℃

Easy to install and operate as the sealing can be done according to the environment

Application:

Home appliances, commercial units, automobiles, etc.

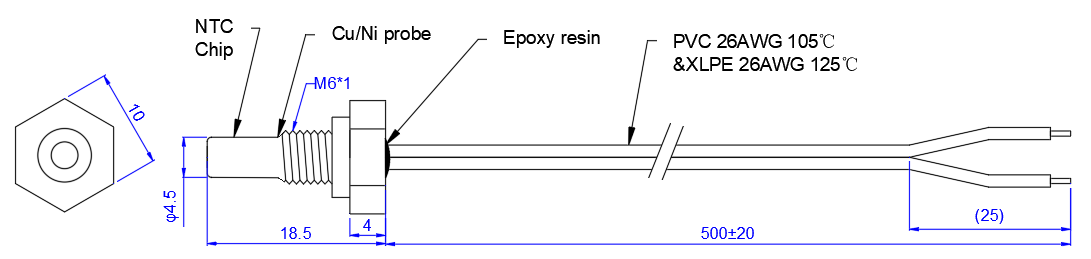

Structure and Dimensions:(unit: mm)

Electrical Specification:

Other Product Images:
